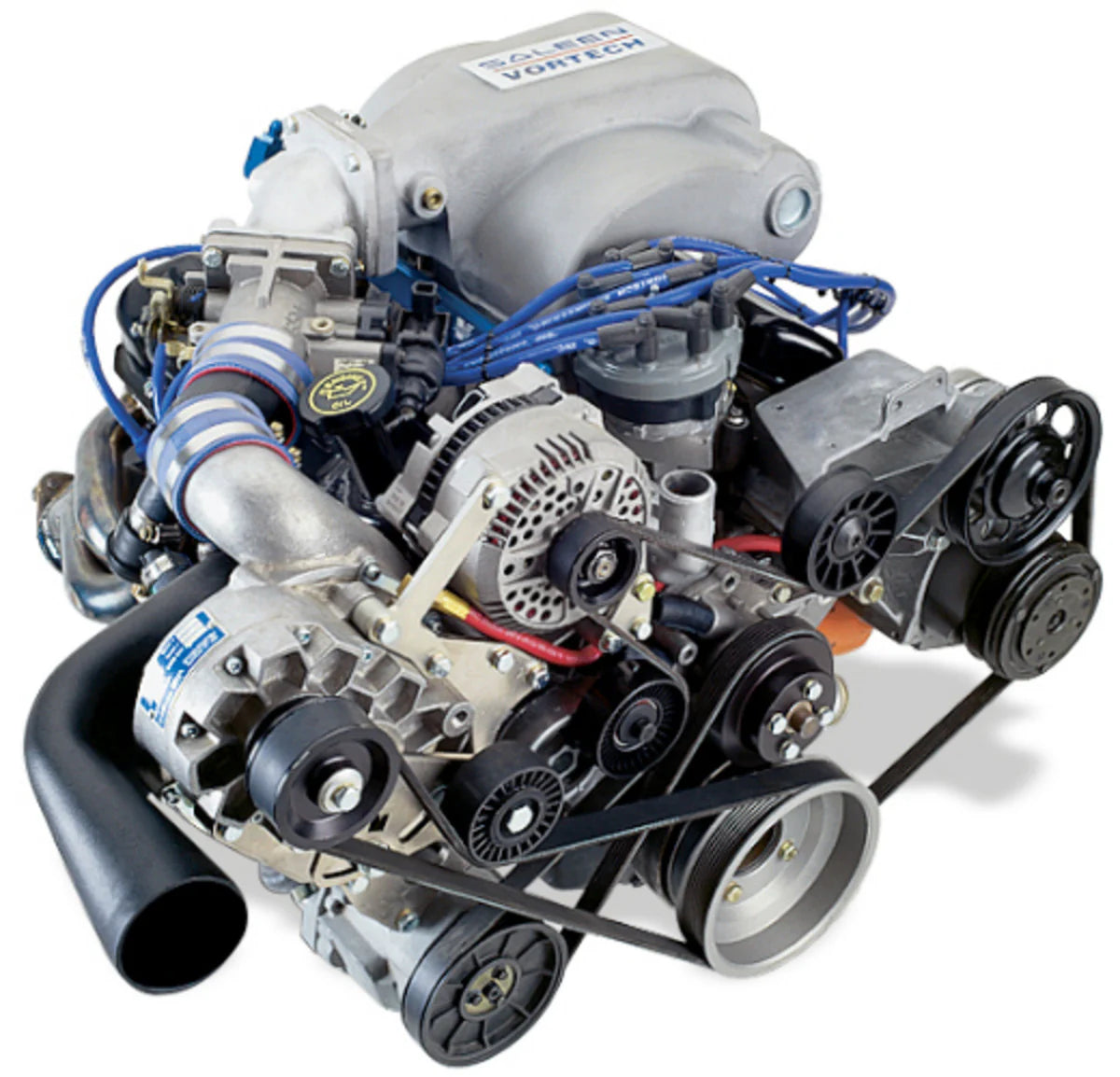

1994-1995 Ford 5.0 Mustang Supercharger Systems

1994-1995 Ford 5.0 Mustang Supercharger Systems

Increase horsepower from 215 to 319 and torque from 285 lb./ft. to 370 lb./ft. at 6-8 psi at the flywheel. The V-1 Ti-Trim is available for those looking for high horsepower applications.

Quality Features

• Vortech gear driven supercharger with SQ technology provides quiet operation and unmatched reliability
• V-3 supercharger features self-contained lubrication
• Technologically advanced, high-efficiency impeller and housing design developed in Vortechs supercharger test cell
• Fuel management upgrade includes high-flow fuel pump and fuel management unit (FMU)
• Complete systems include 6AL-BTM MSD ignition system
• Inlet and discharge duct connections utilize heat resistant silicon sleeves and premium quality stainless steel clamps
• OEM-type cast aluminum mounting bracket for "factory-installed" appearance and rigidity
• High-flow bypass valve provides surge-free compressor operation

Tuner Kits and Supercharger Options

Tuner kits are the same as complete systems except without the fuel system upgrades or ECM reprogramming. This allows for custom tuning and fuel modifications that the custom tuner or racer may prefer. Vortech has supercharger options for various types of racing or boost level. For continued use, such as road racing, the V-2 series superchargers share the engines oiling system. This approach is more suitable for continued boost conditions and allows for the addition of an oil cooler or filter. Call the Vortech Tech Line for complete information on the many upgrades and options available.
